Configure your Proace Max

Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

Engine

2.2 l D-4D 140, 6-speed manual transmission

Fuel Combined WLTP (l/100 km)
7.9 litres/100 km

CO2 Combined WLTP (g/km)
207 g/km

€43,820

2.2 l D-4D 140

2.2 l D-4D 140, 6-speed manual transmission

CO2 Combined WLTP (g/km) 207 g/km
Euro Class EURO 6 EA
Exhaust Emissions EC Regulations (Update) 2023/443EA
Fuel Combined WLTP (l/100 km) 7.9 litres/100 km
Nitrogen Oxides, NOx (mg/km) 43.3 mg/km
Skip to spin container

Colour

Skip to spin container

Wheels

15" steel wheels

15" steel wheels

Tyre info

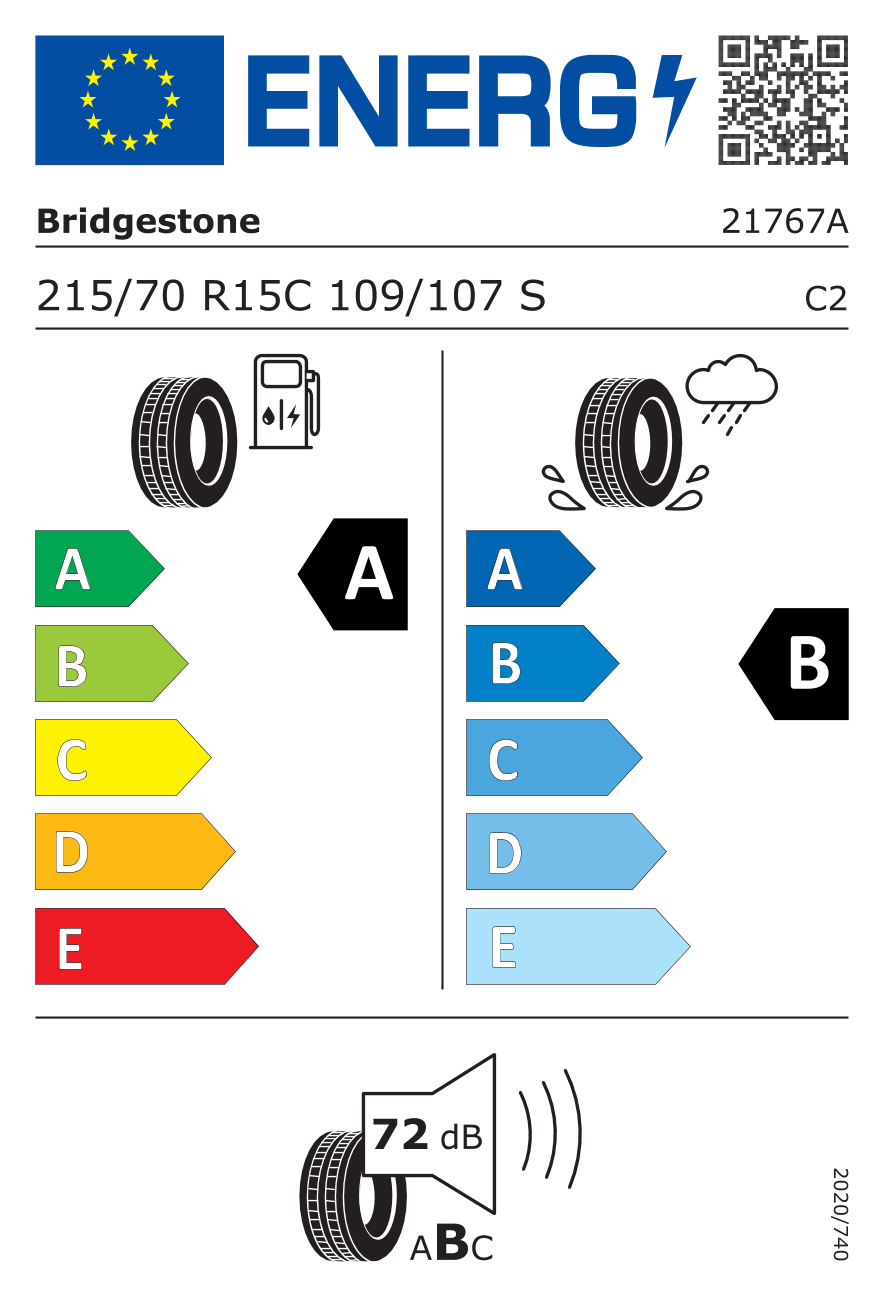

Supplier name or trademark Bridgestone
Tyre type identifier 946243
Tyre size designation 215/70 R15C
Load-capacity index 109
Speed category symbol S
Fuel efficiency class A
Wet grip class B
External rolling noise class B
External rolling noise value 72
Severe snow tyre No
Ice tyre No
Date of start 12/03/2020

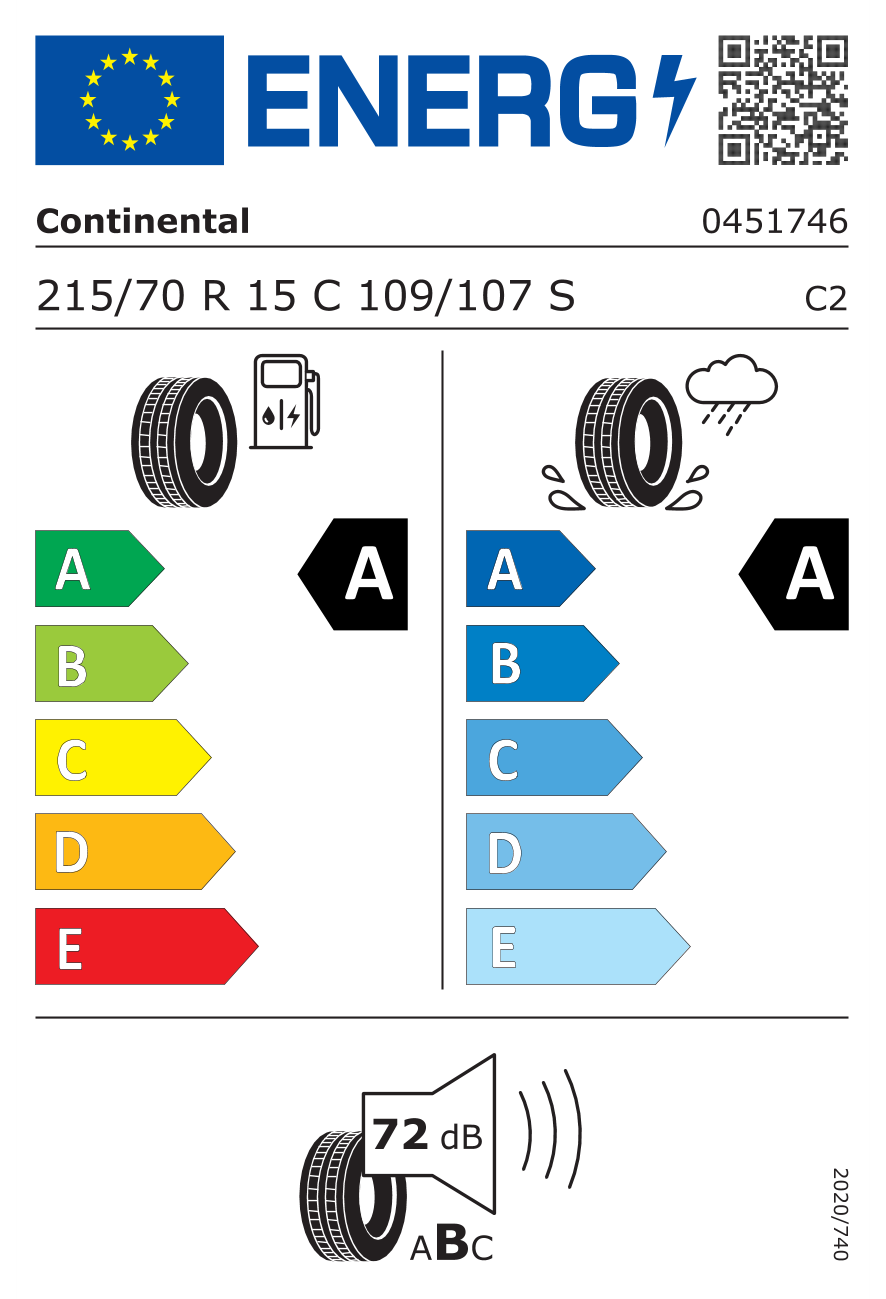

Supplier name or trademark Continental
Tyre type identifier 587957
Tyre size designation 215/70 R 15 C
Load-capacity index 109
Speed category symbol S
Fuel efficiency class A
Wet grip class A
External rolling noise class B
External rolling noise value 72
Severe snow tyre No
Ice tyre No
Date of start 5/03/2021
Load version SL

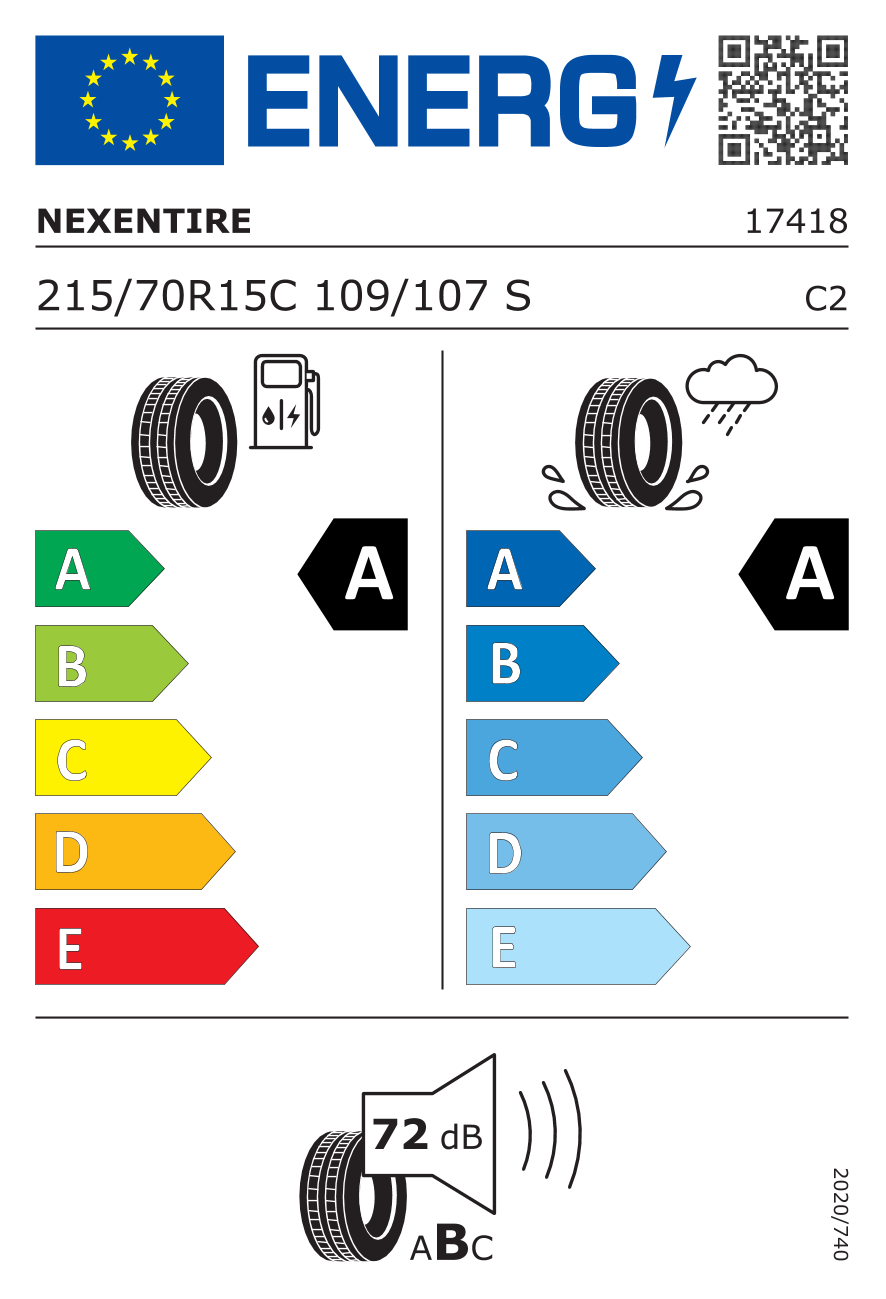

Supplier name or trademark NEXENTIRE
Tyre type identifier 583154
Tyre size designation 215/70R15C
Load-capacity index 109
Speed category symbol S
Fuel efficiency class A
Wet grip class A
External rolling noise class B
External rolling noise value 72
Severe snow tyre No
Ice tyre No
Date of start 1/09/2020

Winter Rim 15"

16" 5-double spoke black machined alloy wheel

Skip to spin container

Upholstery

Skip to spin container

Advanced Racking

Racking System

Aluminium racking

The premium racking can be adapted right down to the smallest detail to your working procedures and the stored items. This makes optimum use of the limited space on the vehicle. The intelligent material mix of aluminium, steel and plastic also saves on weight, and in turn this helps to keep fuel costs down.

Aluminium racking

The premium racking can be adapted right down to the smallest detail to your working procedures and the stored items. This makes optimum use of the limited space on the vehicle. The intelligent material mix of aluminium, steel and plastic also saves on weight, and in turn this helps to keep fuel costs down.

Aluminium racking - left side

Steel and aluminium high-end racking which is located on the left side of cargo area. The racking includes two levels of shelves.

Aluminium racking - left side

Steel and aluminium high-end racking which is located on the left side of cargo area. The racking includes two levels of shelves.

Aluminium racking - right side

Steel and aluminium high-end racking which is located on the right side of cargo area. The racking includes two levels of shelves.

Aluminium racking - right side

Steel and aluminium high-end racking which is located on the right side of cargo area. The racking includes two levels of shelves.
Flooring

Floor

The floor serves as a way of protecting the load area and is profiled exactly to vehicle specifications. It is certified as environmentally friendly. It is entirely veneered with hardwood (beech), with a 12mm thickness and has a top surface of light-resistant anti-slip synthetic resin film anthracite coloured coating. The floor has dedicated plug in nuts for fitting the racking.

Floor

The floor serves as a way of protecting the load area and is profiled exactly to vehicle specifications. It is certified as environmentally friendly. It is entirely veneered with hardwood (beech), with a 12mm thickness and has a top surface of light-resistant anti-slip synthetic resin film anthracite coloured coating. The floor has dedicated plug in nuts for fitting the racking.
Skip to spin container

Extras

No packs were found

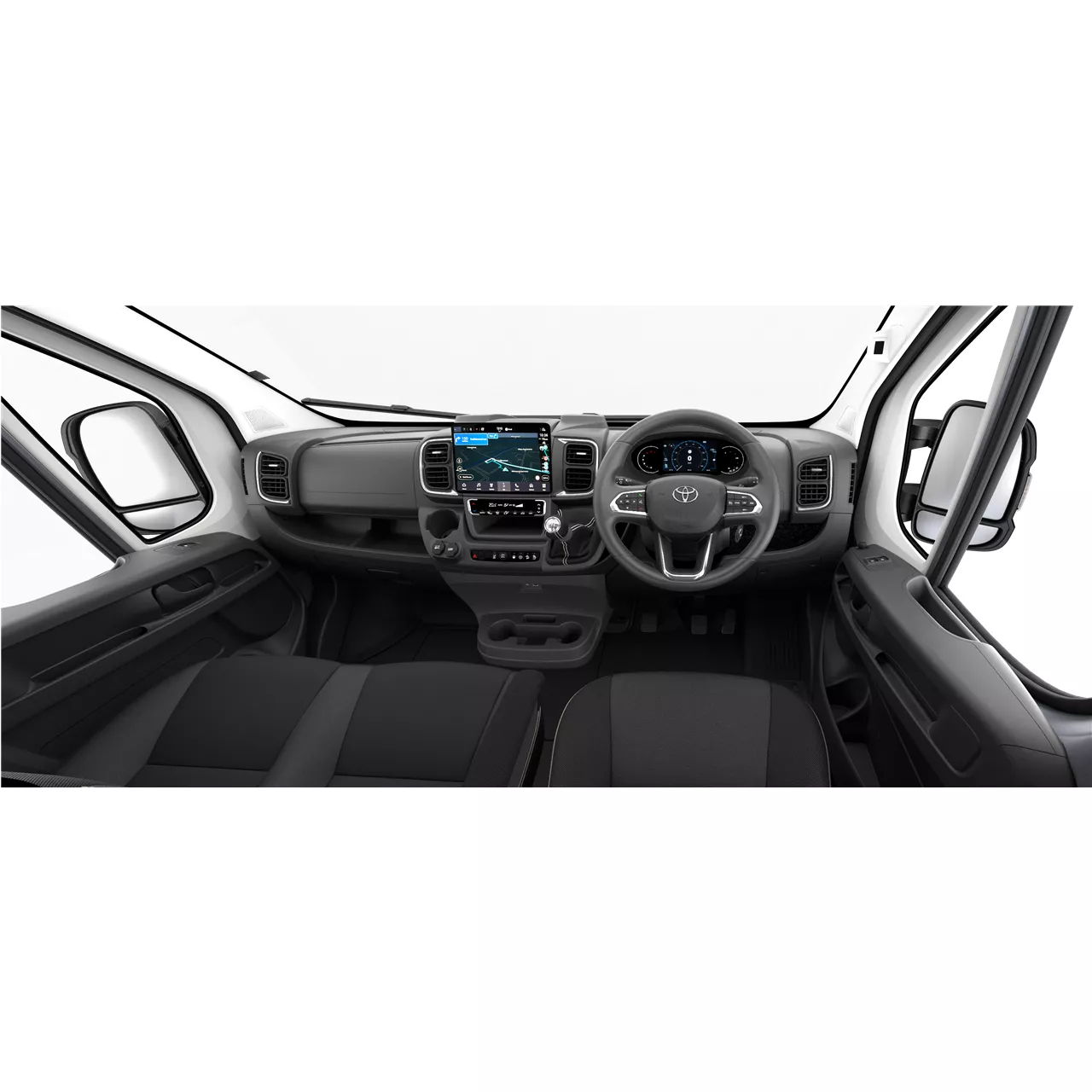

Interior

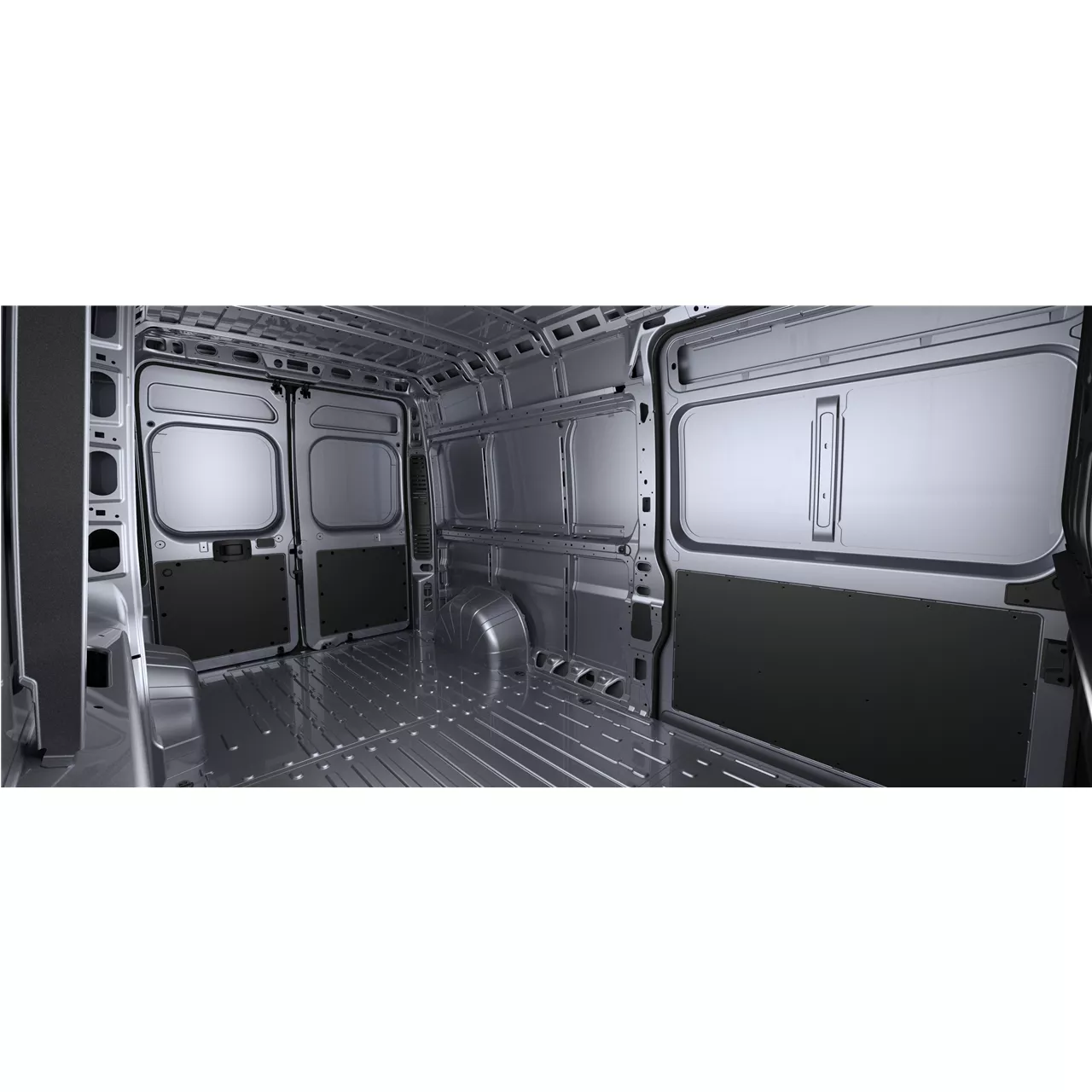

Interior
  • Interior panel

    Interior panel

  • Interior panel

    Interior panel

  • Ladder

    Ladder

    The back door ladder allows you to climb on to the roof attachment accessories/

Comfort
  • Ashtray

    Ashtray

    A smart black finish ensures that the ashtray co-ordinates perfectly with the interior of your car. It fixes neatly in the central cupholder and can be easily removed for emptying and cleaning. The lidded design is very effective in preventing the spread of ash and helping to contain odours. Can also be used a a bin for small items.

  • Cool box

    Cool box

    A 7.5 litre arm rest design secured by seat belt on the rear seats. It plugs into the 12V accessory socket and keeps refreshments either hot or cold. It is hard to beat the cool box for family sized storage of refreshments. Its 8-litre capacity is big enough to fit 0.33l cans and 05.l bottles. The interior space can be divided into two sections if you like to store certain refreshments separately. The box can also be fitted securely in the boot and plugs into your car’s 12V accessory socket to keep food and drinks either piping hot or deliciously chilled.

Transport
  • Tyre storage bag

    Tyre storage bag

    Protects your wheels and / or tyres against accidental damage when they have been removed from the car for storage. This storage bag does not fit all wheels and / or tyres. This depends on the tyre size.

Protection
  • Rubber Floormats

    Rubber Floormats

    Genuine tailored fit rubber floor mats help protect your carpets against the very worst conditions that you or your passengers dare to tread inside. They are impervious to dirt, mud and water and can be removed for easy cleaning.

  • Textile Floormats mid spec

    Textile Floormats mid spec

    Genuine textile floor mats are available in either velour or needle felt material. They are tough, practical and easy to clean. The driver’s mat has a special fixing to prevent slippage during use.

Safety
  • Child Restraint Seat

    Child Restraint Seat

    Caring for young passengers needs careful thought. Be assured, with our child restraint seats you have individual options for each age group.

  • Child Restraint Seat

    Child Restraint Seat

    Caring for young passengers needs careful thought. Be assured, with our child restraint seats you have individual options for each age group.

  • Child Restraint Seat

    Child Restraint Seat

    The BABY-SAFE ISOFIX Base provides maximum security for the BABY-SAFE infant carriers as ISOFIX eliminates any installation errors. The base remains in your car, fixed to the vehicles ISOFIX connection points, and the infant carrier simply clicks or unclicks onto the base as you need it.

  • Child Restraint Seat

    Child Restraint Seat

    Caring for young passengers needs careful thought. Be assured, with our child restraint seats you have individual options for each age group (0 - 12years or to 36kg).

  • Tyre repair kit

    Tyre repair kit

    A very easy to use tyre repair kit. Simply connect the compressor to the interal 12V power supply and the nozzle to the valve and the fully automatic system takes care of the rest. A special liquid is transfered into the punctured tyre. When the liquid comes in contact with where the air leak is, it becomes solid. The remaining liquid stays fluid in the tyre. It is strongly recommended that the customer takes the wheel to the dealer as soon as possible to have it repaired from a safety point of view.

Exterior
Styling
  • Wheel cover

    Wheel cover

    Enhance the look of your steel wheel by installing an original designed wheel cover.

  • Wheel cover

    Wheel cover

    Enhance the look of your steel wheel by installing an original designed wheel cover.

Comfort
  • Charging port cover

    Charging port cover

    The charging port cover protects the charging port in winter conditions. The port cover prevents the charging cable against freezing as the vehicle does not have a port heater.

Transport
  • Roof platform

    Roof platform

    Made of aluminium tube and extrusion to be strong yet also light in weight. It has an integrated rooftop walkway and a ladder roller across the full width of the platform.

  • Roof Rack - Single Bar

    Roof Rack - Single Bar

    The Toyota aluminium roof rack is tailor made to add an extra dimension of carrying capacity to your vehicle. It is easy to install, fully lockable and has a smooth aerodynamic profile that minimises wind noise. Importantly, the rack features a quick attachment concept that enables you to combine it with a superb range of optional attachments for specialised transport purposes.

  • Wiring kit 13pin

    Wiring kit 13pin

    Dedicated wiring kit for use with Toyota towing hitches. The kit’s integral socket makes it quick and easy for you to connect the lights of your car with those of the trailer or caravan you are towing.

Safety
  • dDotDNA main kit

    dDotDNA main kit

    Toyota dDotDNA is a coating of polyester microdots, each containing a unique code (PIN). Applied at concealed points your vehicle is protected by approximately 10,000 microdots. The adhesive for the dots contains a UV element, which glows under a standard black light and the PIN can be viewed using a special magnifier.

  • Security Door Lock

    Security Door Lock

    A reinforced lock kit for the doors that secures your vehicle against break-ins.

  • Security Door Lock

    Security Door Lock

    A reinforced lock kit for the doors that secures your vehicle against against break-ins.

  • Security Door Lock

    Security Door Lock

  • Wheel lock bolt

    Wheel lock bolt

    Set of four hardened steel anti-theft locking nuts featuring a unique coded key and rounded profile that cannot be gripped by a conventional spanner.

Skip to spin container
€44,635
Summary

Order Summary

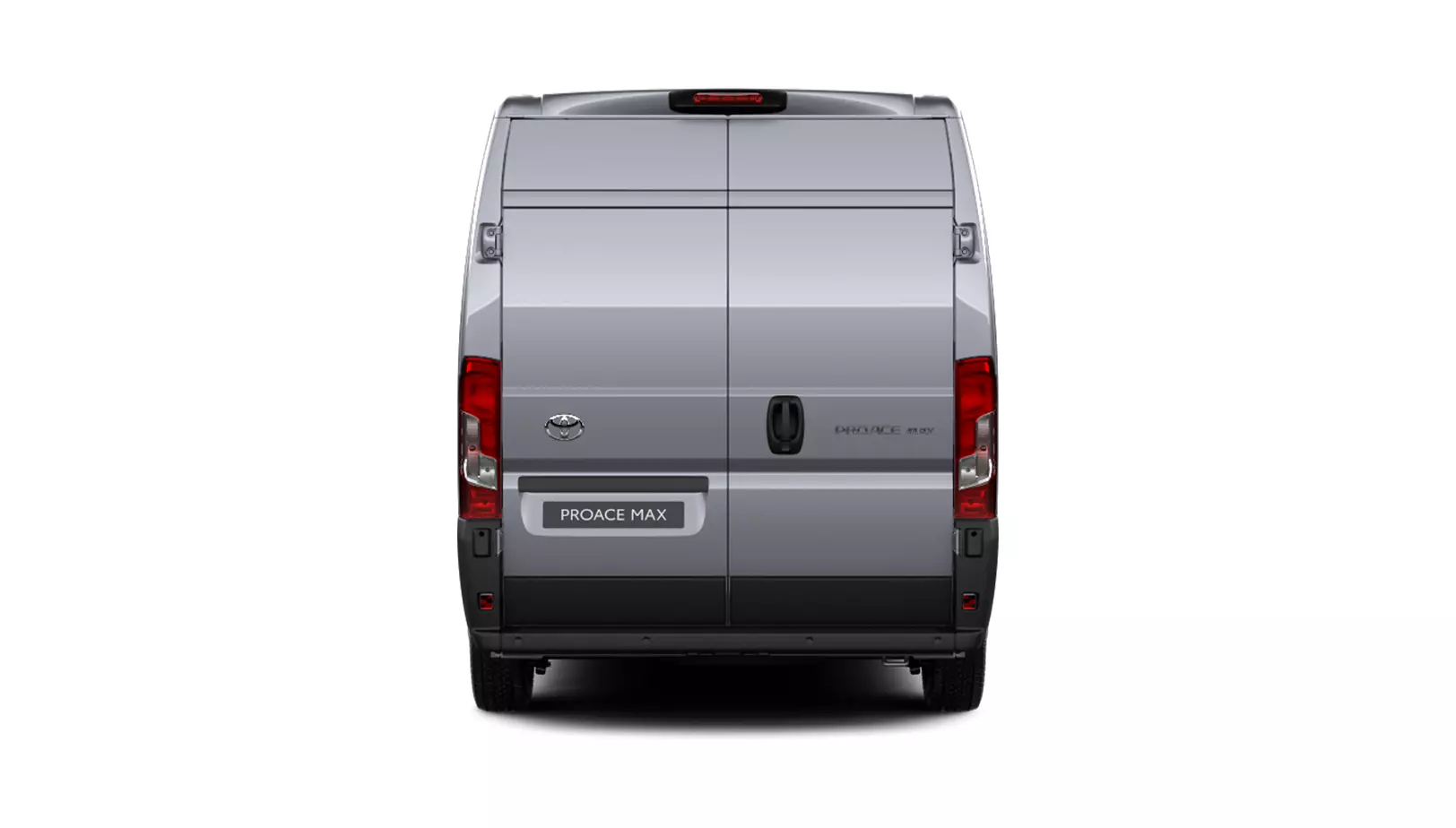

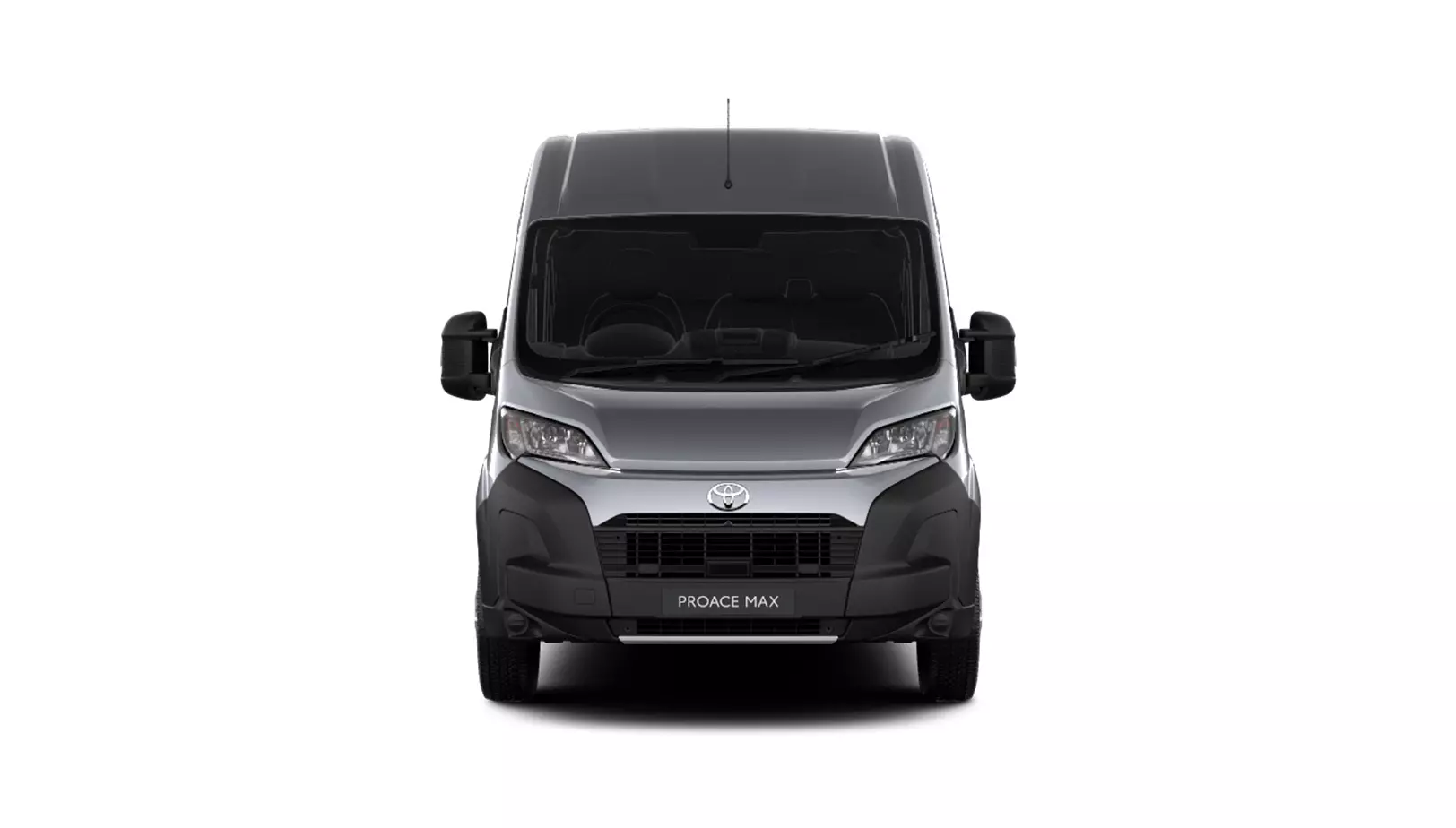

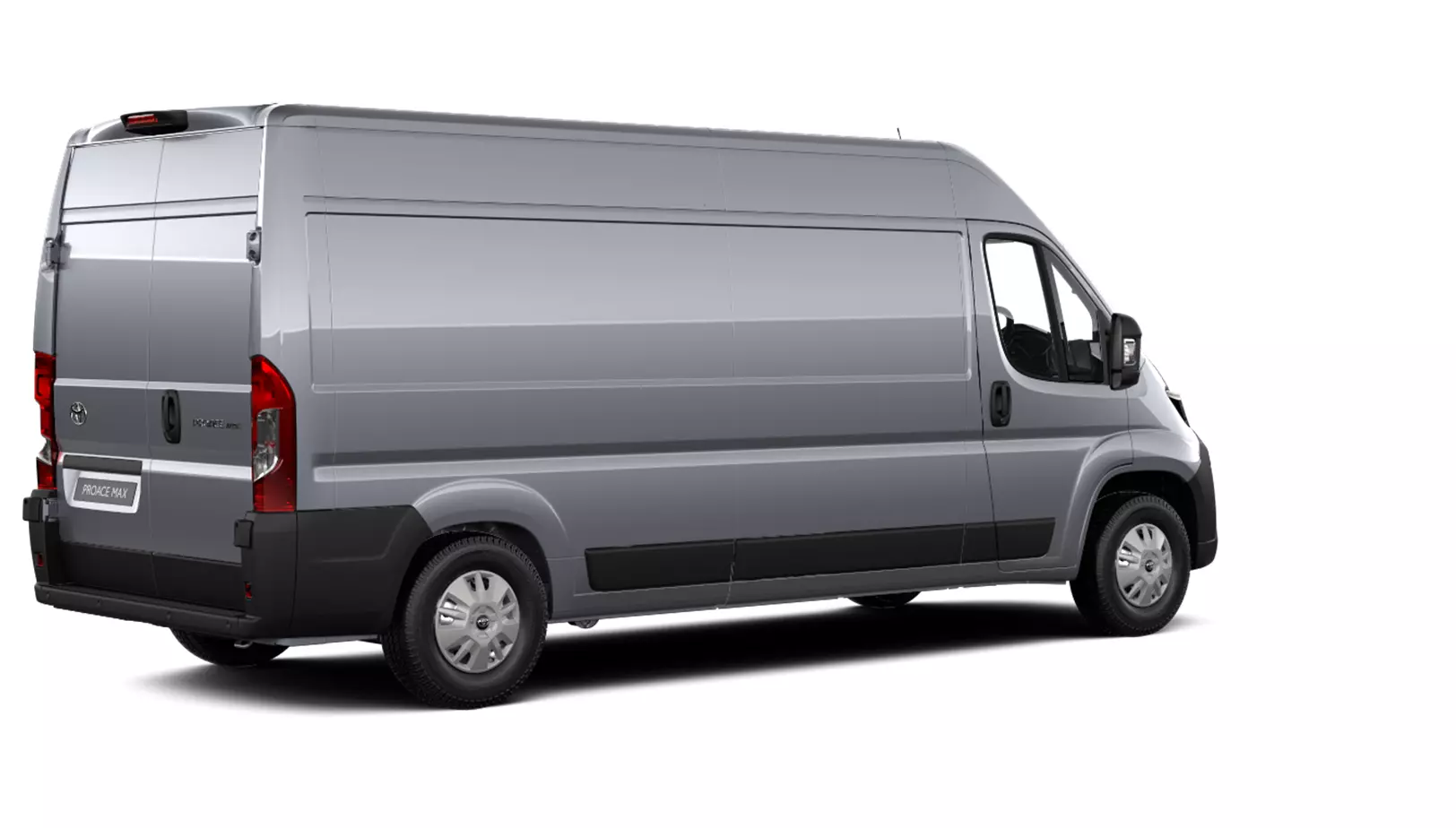

Proace Max

Starting price
€43,820

  • Engine

    2WD
    2.2 l D-4D 140, 6-speed manual transmission

  • Colour

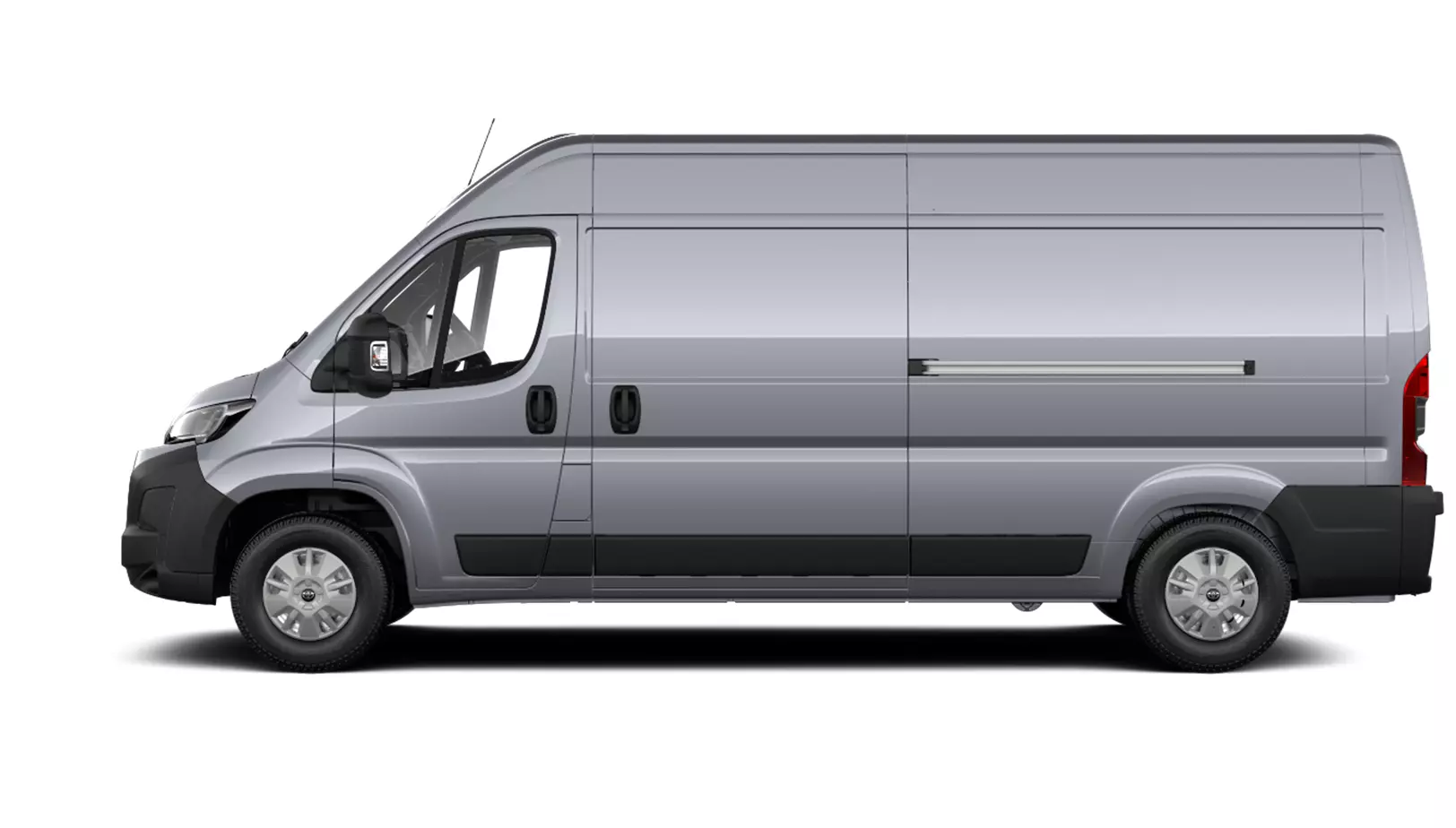

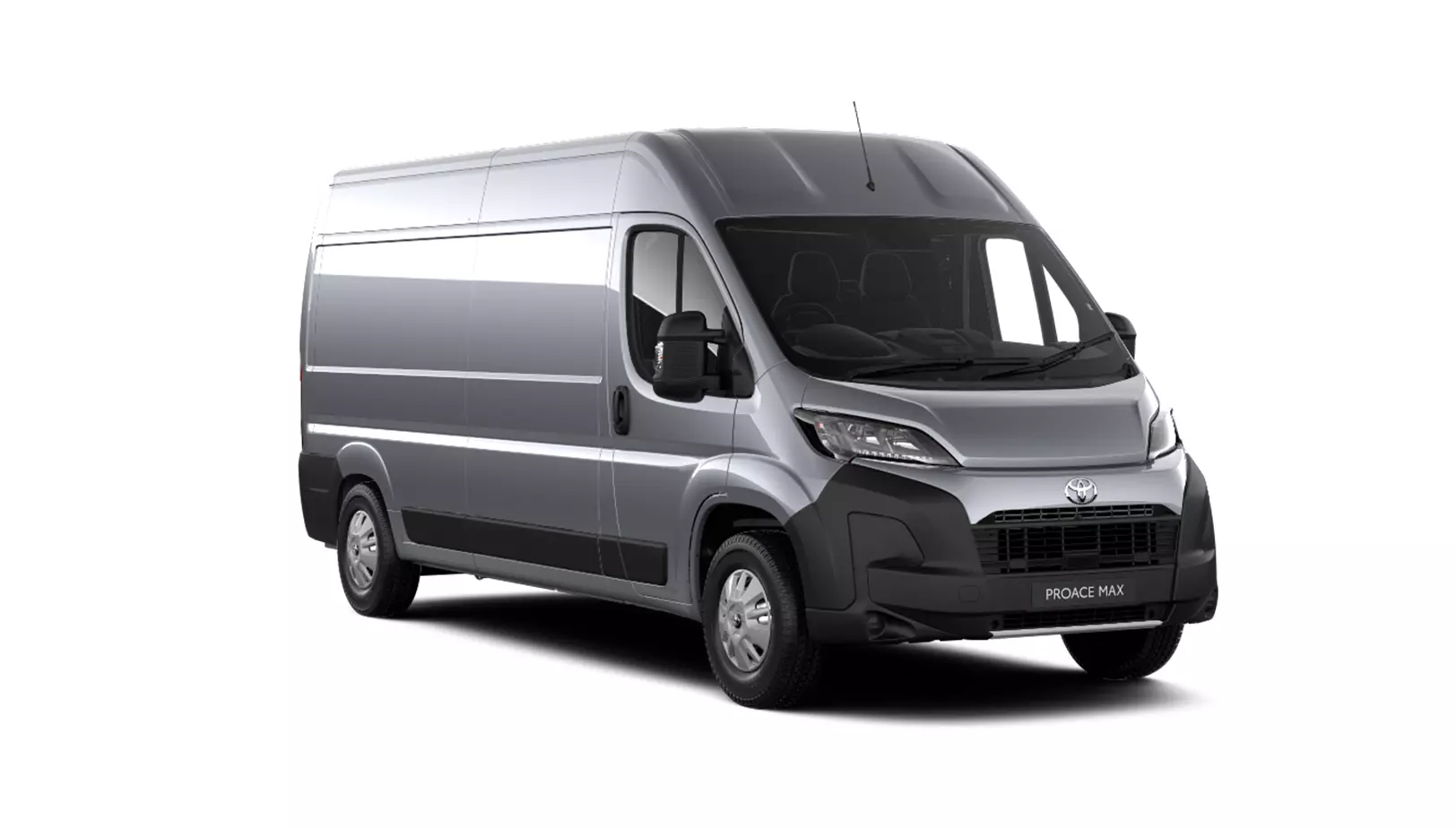

    • Silver (KCA)

      Metallic Paint

      + €815

  • Wheels

    • 15" steel wheels

      Included

  • Upholstery

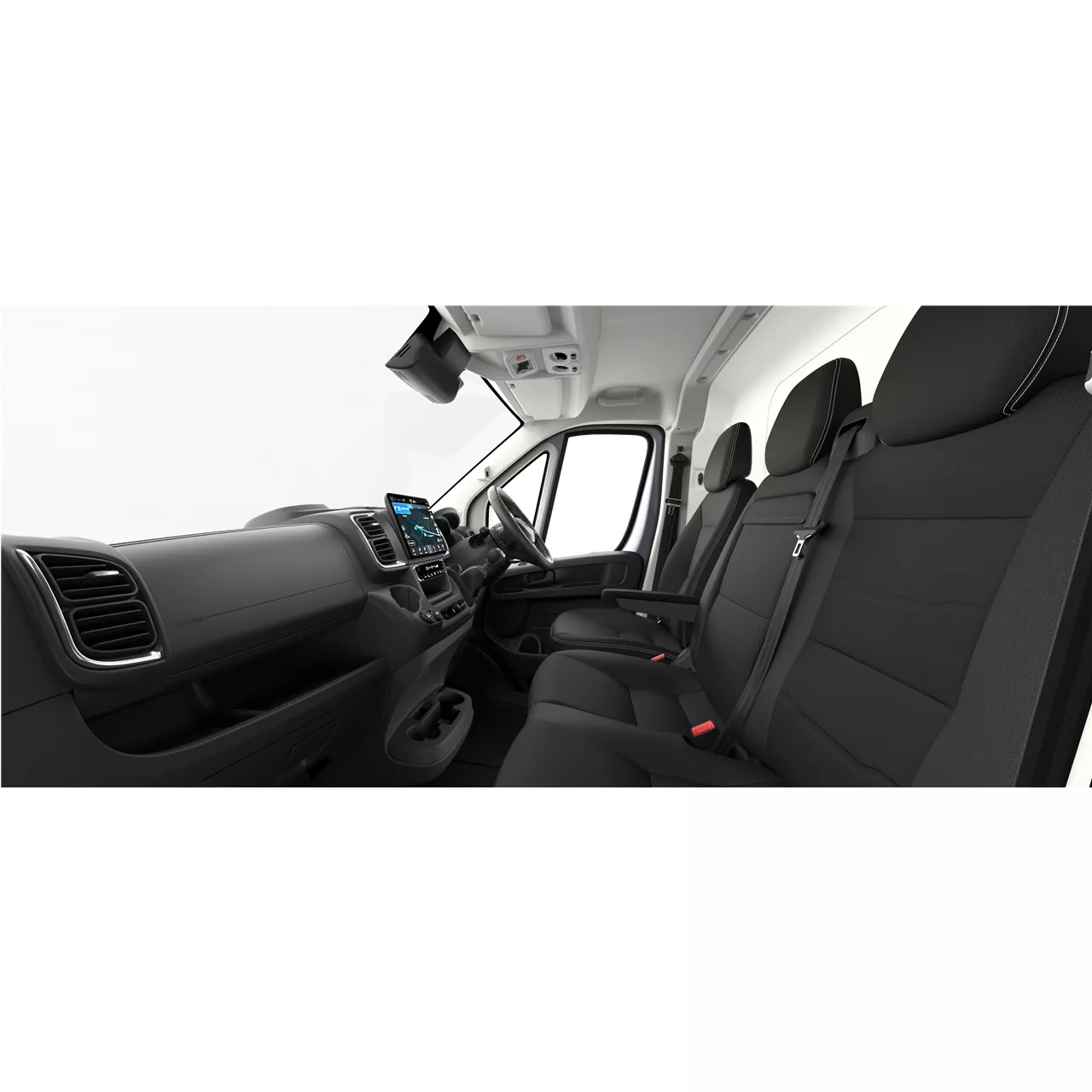

    • Black fabric (BUFX)

      Included

  • Racking

  • Packs & Extras (*Excluded from Summary Price)

Specifications

Technical specifications

Engine

  • Number Of Cylinders

    4 cylinder, in line

  • Displacement (cc)

    2184 ccm

  • Bore x Stroke (mm x mm)

    83.8 x 99 mm

  • Compression Ratio

    15.5:1

  • Maximum power output (kW/rpm)

    103 kW@rpm

  • Maximum torque (Nm/rpm)

    350/1400-2500 Nm

Transmission

  • Drive

    FWD

  • Transmission Type

    Manual

Performance

  • Maximum Speed (km/h)

    153 km/h

Suspension

  • Front

    Independent, MacPherson type (wishbones, coil springs, telescopic shock absorbers & anti-roll bar)

  • Rear

    Rigid tubular axle(parabolic longitudinal leaf springs,telesc. shock absorbers,flexible side buffers

Brakes

  • Front

    Disc

  • Rear

    Disc

Weights & towing capacity

  • Kerb Weight (kg)

    2125-2350 kg

  • Gross vehicle weight (kg)

    3500 kg

  • Towing Capacity With Brakes (kg)

    2500 kg

  • Towing Capacity Without Brakes (kg)

    750 kg

Exterior dimensions

  • Exterior length (mm)

    5998 mm

  • Exterior height (mm)

    2522 mm

  • Exterior width (mm)

    2050 mm

  • Wheelbase (mm)

    4035 mm

  • Front Tread (mm)

    1810 mm

  • Rear Tread (mm)

    1790 mm

Interior dimensions

  • Number Of Seats

    3 seats

Steering

  • Minimum Turning Radius - Tyre (m)

    14.3

Interior

Multimedia

  • Bluetooth® hands-free system

  • Digital Audio Broadcast (DAB)+

  • Radio Player

  • Voice recognition

  • Navigation system with Over-the-Air Updates

  • 10" Multimedia Display

  • 4 speakers

Styling

  • 3-spoke Synthetic leather steering wheel

Comfort

  • Dynamic guide lines on rear-view camera display

  • Automatic air conditioning

  • Driver armrest

  • Manually adjustable lumbar support on driver seat

  • Boot lamp (LED type)

  • Coloured TFT information display

  • 7" screen for information display

  • Audio switches on steering wheel

  • Telephone switch on steering wheel

  • Lane Departure Alert switch on lower driver dashboard

  • Boot 12V power outlet

  • Deadlock on rear doors

  • Speedometer (km/h)

  • Driver & front passenger rotating fold-up table

Transport

  • Inner load hooks on cargo deck

  • Overhead storage

  • Front cup holders (4)

  • Closed single cabin

  • Front driver under-bench storage

Safety

  • Front seat belt reminder

  • Panel bulkhead

  • Driver & passenger front airbag

  • Handbrake

  • Chrome centre air vents

  • Rear seat belt reminder

Exterior

Wheels

  • Full spare steel wheel

Styling

  • Black front bumper

  • Black rear bumper

  • Black painted upper front grill

  • Smoke tinted (30%) privacy glass

  • Plastic under-seat housing

  • Roof antenna

Comfort

  • Dusk sensor

  • 180° opening of rear wing doors

  • Power-adjustable door mirrors

  • Heated door mirrors

  • One sliding side door (Passenger side)

  • Manually retractable door mirrors

  • Panel rear swing doors

  • Standard arm door mirrors

  • Panel (without side windows)

Protection

  • Black protection moulding on side doors

Safety

  • Spare wheel carrier under body

  • Automatic High Beam (AHB)

  • Projector halogen headlamps

  • Rear parking sensors

  • Rear-view camera

  • Rear combination lamps (bulb type)

  • Cruise Control

  • Hill-start Assist Control (HAC)

  • Tyre Pressure Warning System (TPWS)

  • Vehicle Stability Control Plus (VSC+)

  • Intrusion alarm

  • Glass-breaking alarm sensors

  • Motion sensor alarm

  • Lane Departure Alert with Steering Control

  • eCall emergency call system

  • Anti-tamper alarm

  • Driver Attention Alert

  • Lane Trace Assist (LTA)

  • Pre-Collision System with Pedestrian and Cyclist Detection

  • Road Sign Assist (RSA) with Traffic Sign Recognition (TSR)

  • Intelligent Speed Assist

  • Daytime running lights (bulb)

  • Pre-disposition for breathalyser engine lock

  • Event Data Recording

Environmental Performance

  • CO2 Combined WLTP (g/km)

    207 g/km

  • Euro Class

    EURO 6 EB

  • Exhaust Emissions EC Regulations (Update)

    2023/443EB

  • Fuel Combined WLTP (l/100 km)

    7.9 litres/100 km

  • Nitrogen Oxides, NOx (mg/km)

    43.3 mg/km

  • Sound Level Drive By (dB(A))

    71.0 dB(A)

  • Total

    €44,635
